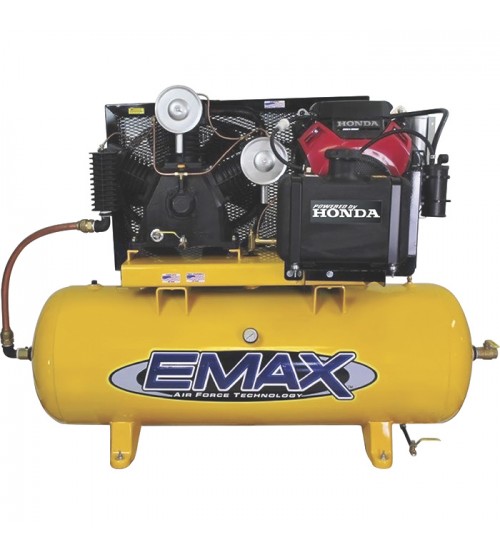

This EMAX Industrial Plus 24 HP, 2-Stage, 80-Gallon, Horizontal Gasoline Air Compressor is designed to operate up to 50,000 hours. It features a 24 HP Honda GX engine with electric start for excellent torque and fuel efficiency. The 5-gallon gas tank allows long periods of work between refuelings. The industrial Flow-Tek concentric disc valves deliver maximum airflow and reliability, and low replacement cost. Cool-Tek technology operates at temperatures as much as 35% lower than comparable air compressors, and reduces moisture buildup. Air-Stream technology provides up to 50% longer pump life than typical compressors. The gate valve oil drain allows quick, clean oil changes. The 60-gallon truck-mount horizontal air receiver is ASME certified.
What's IncludedFeatures + Benefits
| Item# | 61206 |
| Brand | Emax |
| Manufacturer's Warranty | 5 year limited warranty |
| Ship Weight | 1150.0 lbs |
| Max. PSI | 175 |
| HP | 24 |
| CFM at 100 PSI | 57 |
| CFM at 90 PSI | 60 |
| Engine | GX660 |
| Start Type | Electric |
| Engine Displacement (cc) | 688 |
| Gross Torque | 35.6 |
| Engine Idle Control | Manual |
| Stage | 2 |
| Drive | Belt |
| Working Pressure (PSI) | 145 |
| Tank Type | Horizontal |
| Air Tank Size (gal.) | 80 |
| Portable or Stationary | Stationary |
| Pump | APP3Y2062T |
| Duty Cycle | 70% |
| Air Outlet Size (in.) | 3/4 |
| After-Cooler Included | Yes |
| Drain System | Manual |
| Low Oil Protection | No |
| Pump Life (hrs.) | 50,000 |
| Fuel Capacity (gal.) | 5 |
| Dimensions L x W x H (in.) | 72 x 25 x 50 |
| Product Weight (lbs.) | 940 |
