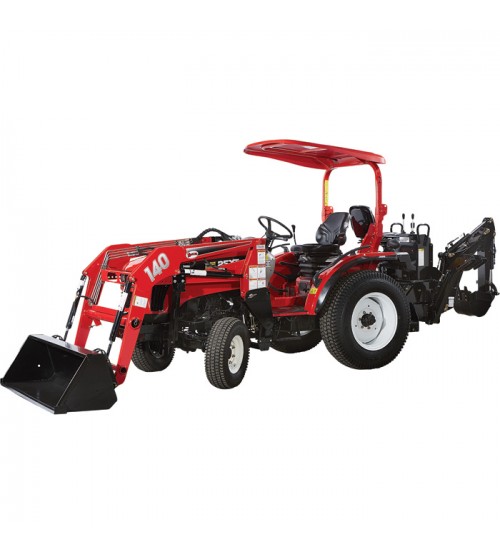

NorTrac 35XT 35 HP 4WD Tractor with Front End Loader & Backhoe with Turf Tires

Price:
$9,193.53
Condition:
New
Shipping:
Calculated at checkout


Product Description

NorTrac 35XT 35 HP 4WD Tractor with Front End Loader & Backhoe with Turf Tires

For ranch-owners, hobby farmers, golf courses and municipalities, you can't beat the versatility of the NorTrac® 35XT. Its combination of size and power make it great for equestrian operations, brush cutting, post hole digging, grounds maintenance jobs and much more. Powered by a 35 HP 4-cylinder liquid-cooled EPA IV diesel engine with glow plugs and lower radiator hose heater, this tractor is engineered for years of trouble-free use. The tractor has shuttle shift transmission with 8 forward and 8 reverse speeds, so you'll always find the right speed for the job and 4-wheel drive for working on rough and varied terrain. The 3-pt. Category 1 hitch lets you expand your working options with a wide variety of attachments. Features full on-road lighting package with turn signals, suspension seat, instrument panel with fuel level, tachometer, hour meter and engine temperature gauges. Indicator lights for low oil pressure, battery discharge, glow plugs and parking brake set. ROPS (roll over protection structure) certified to OSHA standards. Includes streamlined canopy. NorTrac tractors arrive fully assembled on a flat bed trailer and are fully operational at the point of delivery. Loader and backhoe are made in the United States, tractor  2-year consumer limited warranty; 6 month commercial limited warranty.

What's Included
  • (1) Tractor
  • (1) Loader
  • (1) Backhoe

Features + Benefits

  • NorTrac 35XT 35HP 4WD Tractor
  • Shuttle shift transmission has 8 forward and 8 reverse speeds
  • 2-stage clutch with 2-speed PTO
  • Hydraulic power steering for near-effortless turning
  • 4-wheel drive for various working conditions
  • 3-pt. Category 1 hitch for implements
  • Step-through design for easy access to operator area
  • Heavy-Duty Front End Loader
  • Bucket width: 60in.W
  • Digging depth: 5in.
  • Max. height at pivot pin: 8ft.5in.
  • Lift capacity max. height at pivot pin: 1,480 lbs.
  • Breakout force at ground line at pivot pin: 3,780 lbs.
  • Max. dump angle: 50°
  • Reach @ max. height: 2ft.1in.
  • Clearance, bucket dumped: 6ft.7in.
  • Heavy-Duty Backhoe
  • Bucket width: 13in.
  • Bucket capacity: 0.88 cu. ft.
  • Max. digging depth: 6 1/2 feet
  • Total length: 222in.
  • Replacement parts available from NorTrac (1-800-521-0438)
Key Specs
Item# 511625
Brand NorTrac
Manufacturer's Warranty 24 months parts / 24 months labor
Ship Weight 6182.0 lbs
Product Style Tractor w/loader and backhoe
Tire Type Turf tires
Air-Conditioned Cab No
Engine Model Laidong 4L22TA EPA IV
Rated Power (HP) 35
Engine Type 4-cylinder, vertical, liquid cooled, diesel
Engine Displacement (CI) 124
Rated RPM 2,350
3-Pt. Hitch Type Category 1
3-Pt. Hitch Lift Capacity (lbs.) 1,615
PTO Speed (RPM) 540/1,000
PTO Power (HP) 31 1/2
Overall Dimensions L x W x H (in.(mm)) 216 x 61 x 94 (5,486 x 1,549 x 2,387)
Net Weight (lbs.(kg)) 5,234 (2,373)
Rated Traction Force (lbs.) 1,710
Wheel Base (in.(mm)) 71 (1,806)
Wheel Tread Width - Front (in.(mm)) 49 (1,240)
Wheel Tread Width - Rear (in.(mm)) 49-57 (1,240-1,440)
Front Axle Ground Clearance (in.(mm)) 12 1/2 (320)
Tires - Front 7.5-16
Tire Inflation - Front (PSI) 29-36
Tires - Rear 12.4-24
Tire Inflation in Field - Rear (PSI) 16 -20
