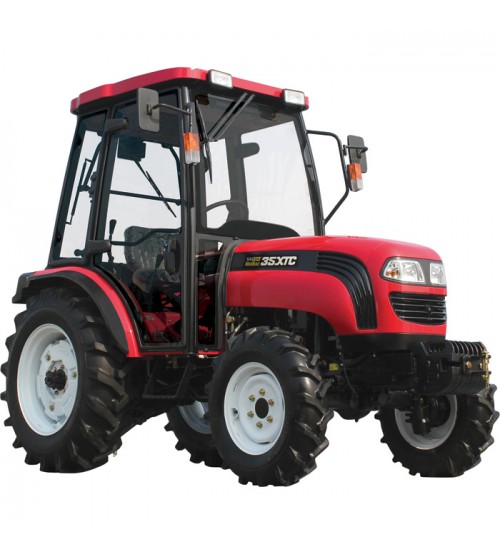

For ranch owners, hobby farmers, golf courses and municipalities you can't beat the versatility of the NorTrac® 35XTC. Its combination of size and power make it great for equestrian operations, brush cutting, post hole digging, grounds maintenance jobs and much more. Powered by a 35 HP EPA Tier-IVi engine with glow plugs and lower radiator hose heater, this tractor is engineered for years of trouble-free use. The tractor has 8 forward and 8 reverse speed transmission with Synchro shuttle, so you'll always find the right speed for the job and selectable 2 or 4-wheel drive for working on rough and varied terrain. The 3-pt. category 1 hitch lets you expand your working options with a wide variety of attachments. Features a fully-enclosed cab with heat, front and rear wipers, sun shade, front and rear work lights and side-view mirrors, as well as an instrument panel with tachometer, hour meter, fuel level and engine temperature gauges. Warning indicators for oil pressure and electrical charging system, along with other performance indicators for key operating systems. NorTrac tractors arrive fully assembled on a flat bed trailer and are fully operational at the point of delivery. 2-year consumer limited warranty; 6 month commercial limited warranty.
Features + Benefits
| Item# | 512354 |
| Brand | NorTrac |
| Manufacturer's Warranty | 24 months parts / 24 months labor |
| Ship Weight | 4136.0 lbs |
| Product Style | Tractor only |
| Tire Type | Ag tires |
| Rated Power (HP) | 35 |
| Engine Type | 4-cylinder, vertical, liquid cooled, diesel |
| Engine Displacement (CI) | 124 |
| Rated RPM | 2,350 |
| 3-Pt. Hitch Type | Category 1 |
| 3-Pt. Hitch Lift Capacity (lbs.) | 1,615 |
| PTO Speed (RPM) | 540/1,000 |
| PTO Power (HP) | 31 1/2 |
| Overall Dimensions L x W x H (in.(mm)) | 137 x 61 x 94 (3,479 x 1,550 x 2,387) |
| Net Weight (lbs.(kg)) | 3,472 (1,575) |
| Min. Operating Weight (lbs.(kg)) | 3,858 (1,750) |
| Rated Traction Force (lbs.) | 1,710 |
| Wheel Base (in.(mm)) | 71 (1,806) |
| Wheel Tread Width - Front (in.(mm)) | 49 (1,240) |
| Wheel Tread Width - Rear (in.(mm)) | 49–57 (1,240–1,440) |
| Front Axle Ground Clearance (in.(mm)) | 12 1/2 (320) |
| Tires - Front | 7.5-16 |
| Tire Inflation - Front (PSI) | 29–36 |
| Tires - Rear | 12.4-24 |
| Tire Inflation in Field - Rear (PSI) | 16–20 |
| Turning Radius (in.) | 114 |
