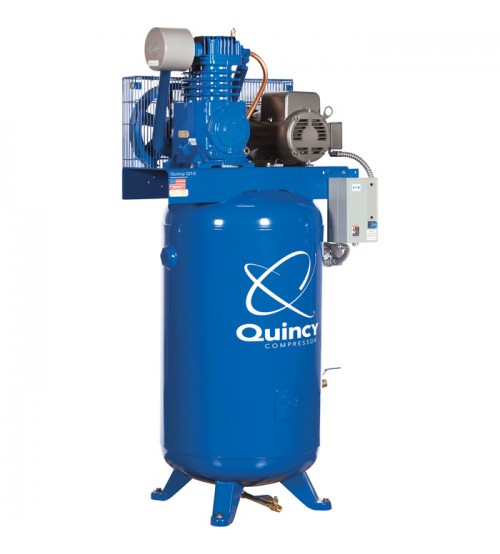

Quincy QT-5 Splash Lubricated Reciprocating Air Compressor 5 HP, 230 Volt, 3 Phase, 80-Gallon Vertical, Model# 253DS80VCB23

Quincy reciprocating air compressors are designed to be a compressor for life.

They are built for efficiency and lower operating costs, producing more compressed air at a lower horsepower than the average air compressor.

They run at a slower RPM, run cooler and cost less to operate.

Heavy-duty compressors are engineered for industrial applications and boast a best-in-the-industry 50,000-hour pump life rating. Purchase an extended warranty kit (Item# 42637) at the same time (on the same receipt) as your Quincy air compressor and register online within 10 days of receipt, and it will double the package warranty to 2 years and triple the pump warranty to 3 years (on-site parts and labor included).

• (1) 5 HP, 80-gallon vertical air compressor

Features + Benefits

• Industrial-duty motor
• Industrial-duty general-purpose mounted and wired magnetic starter
• Less than 5 PPM oil carry-over (blow-by) rating
• 145–175 working PSI
• Pump RPM: 942
• 2-cylinder pump design
• Heavy-duty, easy-to-reach, manual ball valve
• 2-stage belt drive pump with solid cast iron cylinder
• Finned tube intercooler for maximum cooling and increased valve life
• Aluminum head for heat dissipation
• Extra-capacity oil reservoir for low oil temperatures
• Cast iron fly wheel for energy efficiency and durability
• 100% duty cycle
• Splash lubrication
• UL & CSA approval on all electrical components
• ASME-coded pressure relief valves and tanks
• Additional charge for liftgate shipping option
• Ships in heavy-duty protective crate with oil in the pump
